Electronic System 'Evolution', alu black coated, electrical mounting plate for free frame triangle, mounting holes for standard- or Motogadget components

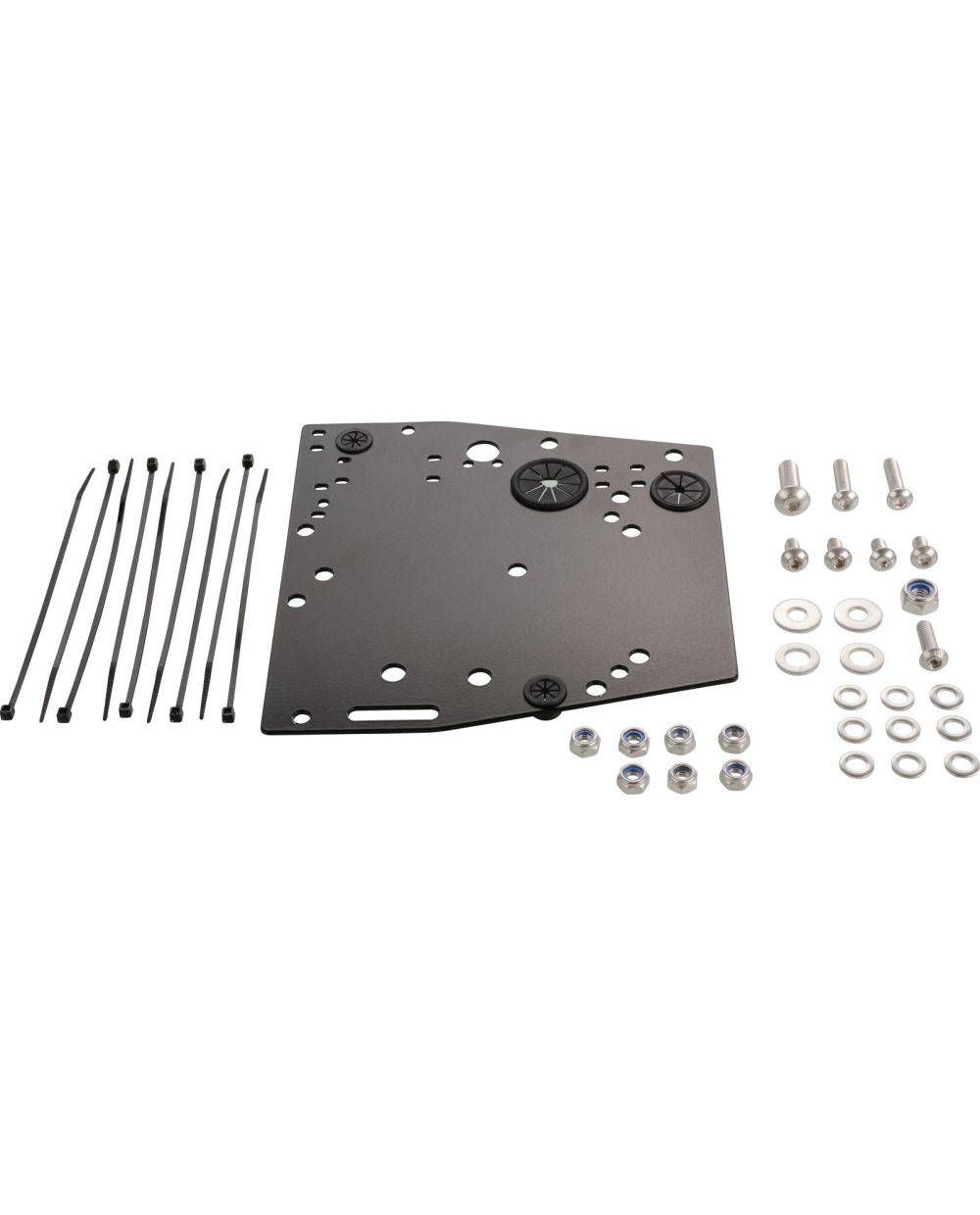

SR500 'Evolution' Electrical System Plate

The electronics system forms the electronic heart of your conversion, allowing all components to be routed under the seat in a structured and inconspicuous manner. Thanks to its modular design, the conversion part can be used to implement a wide range of wiring looms.

• Unobtrusive installation of the electrical components
• A wide range of wiring looms can be implemented - including mounting holes for Motogadget m-unit, m-look and m-relay
• Designed for capacitor or external battery
• Well thought-out design for optimum structure of the electronics
• Includes comprehensive mounting material and instructions
• The base plate is screwed to the attachment points of the air filter/battery box


Possible components:

• OEM voltage regulator
• OEM CDI
• Fuse holder item 40348
• Flasher relay:
• SR500 -'92: item 41620
• SR500'93-: Item 41359
• Universal with indicator control light, problem solver for LED indicators: Item 41340/41621
• Motogadget Mini item 41194
• Motogadget m-Unit: Item 41622
