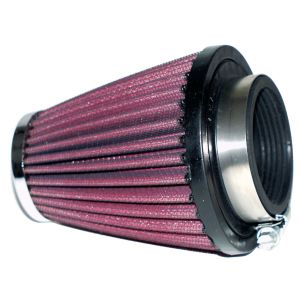

Air Filter Mounting/Air Intake Tract- Extension for Racing Air Filter (54mm, e.g. item 91372), stainless steel, with black engine ventilation hose

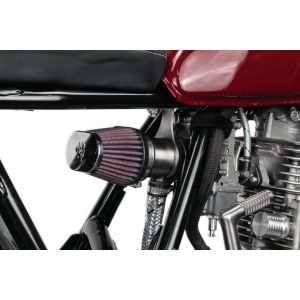

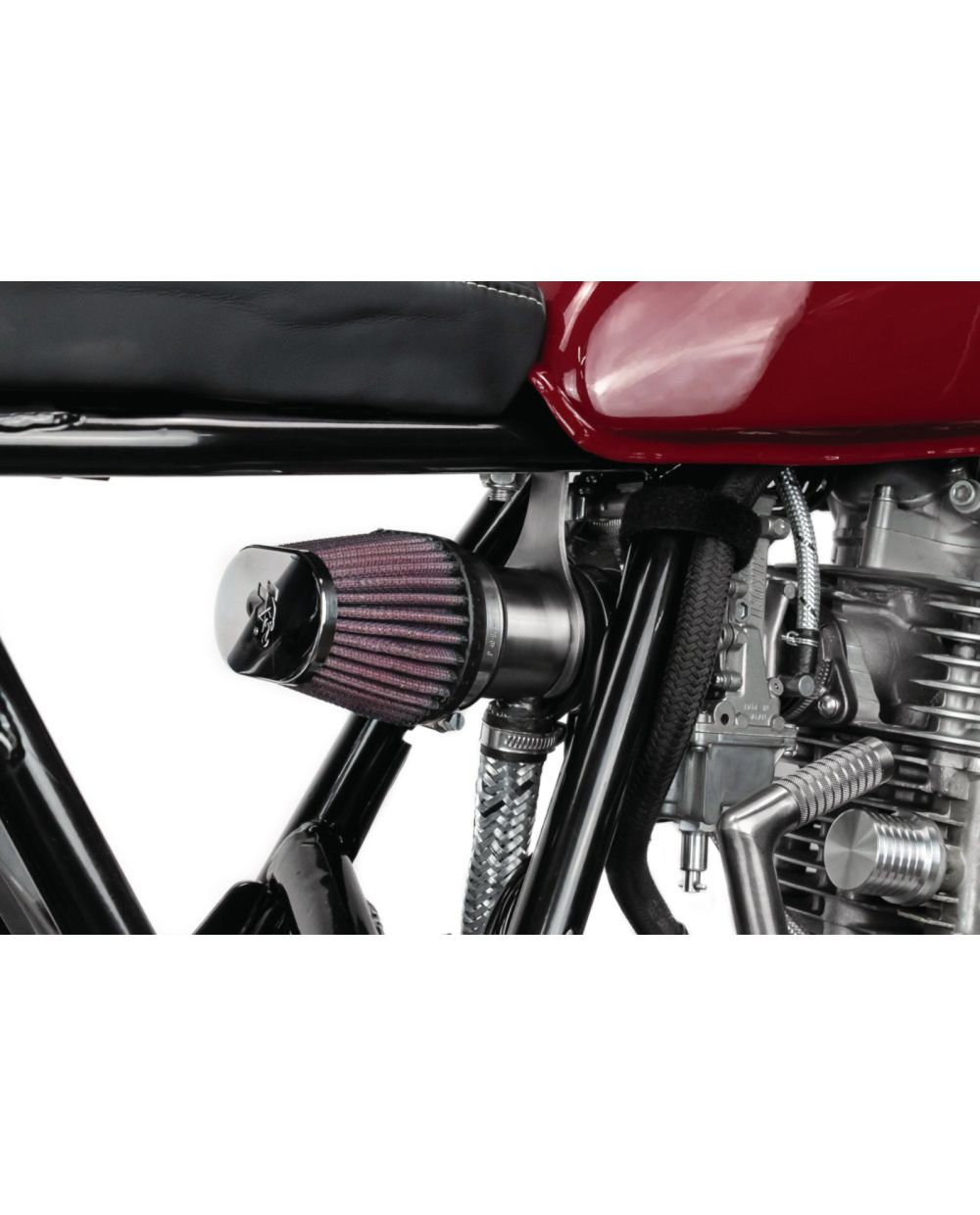

SR500 Sports Air Filter Adapter

The air filter adapter solves several challenges when converting to an open air filter. Thanks to the integration of the oil mist recirculation of the crankcase ventilation, which is necessary for the TÜV, the registration of open air filters is facilitated. In addition, the entire intake tract is stabilised, straightened and lengthened via the holder system.

• Integrated crankcase ventilation
• Frame-fixed bolting for stabilisation of the intake tract
• High-quality stainless steel, cleanly welded
• Vibration-damped mounting

Assembly: If you have already cleared your frame triangle, the assembly is done in no time.
First, connect your open air filter and the carburettor with the supplied rubber connector and fasten them with the corresponding hose clamps. Now simply remove the original oil hose and fix the supplied breather hose to the engine and the intake manifold with additional hose clamps. Finally, the intake manifold is fixed to the frame using the bracket and the screws supplied.
