Control Box for LED Headlights with Daytime Running Light Function (combine with On/Off- Handlebar Switch, switches between low-beam/daytime running light)

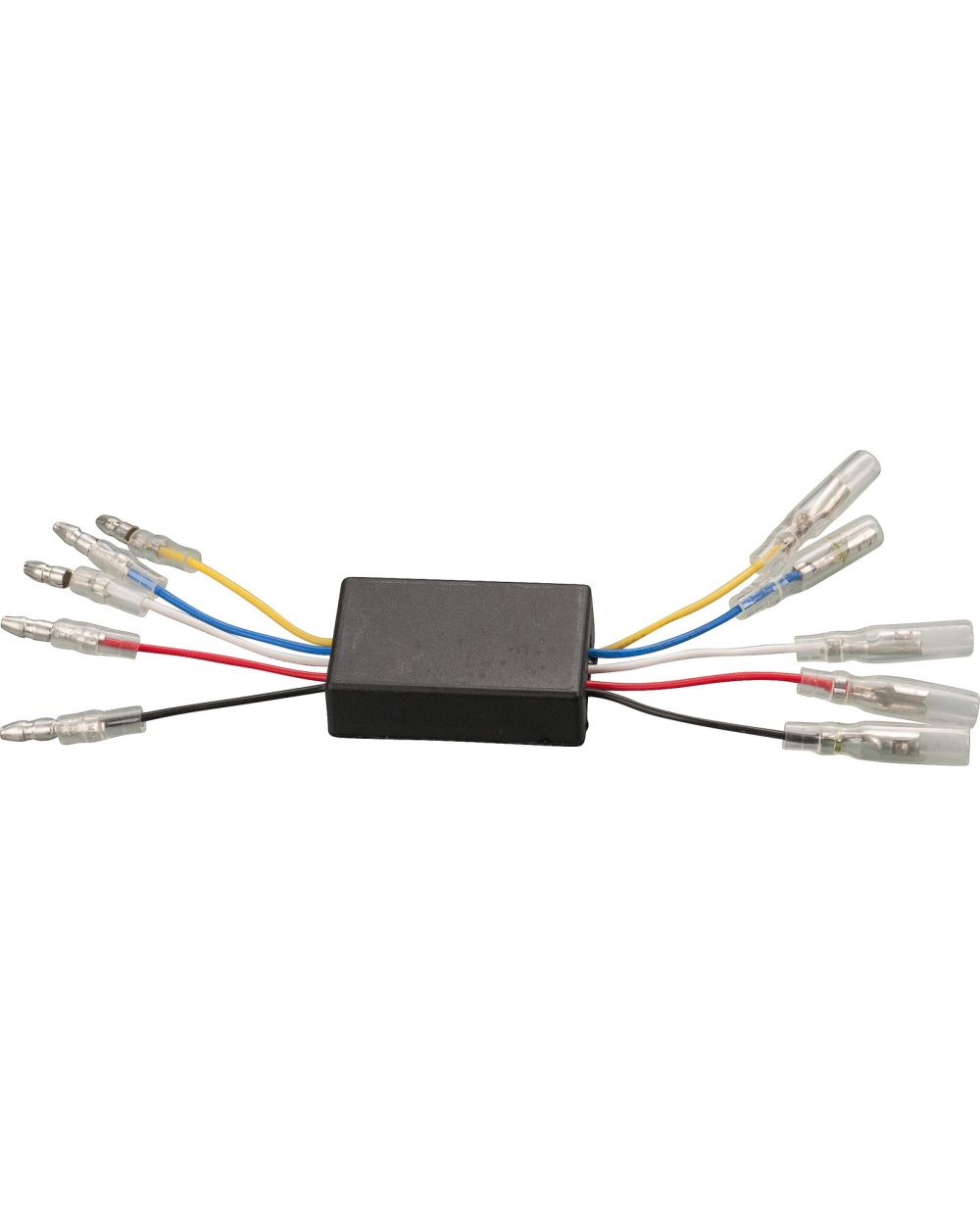

DRL CONTROL- BOX CB1, Black Box for daytime running light / illumination

According to the regulations, the daytime running light must be connected in such a way that it switches off automatically when the headlight is switched on. Since the headlight is always on in vehicles without a light switch, the daytime running light function cannot be used correctly. The BOX is suitable for LED and conventional headlights and is installed between the headlight with integrated or separate daytime running light and the vehicle's electrical system. The parking light function, which is switched via the ignition lock when the vehicle is parked, is fully functional.

Dimensions: LxWxH 48 x 28 x 14 mm

Assignment:

IN (vehicle electrics):

Yellow = high beam (+), Blue = low beam (+) ON / OFF switch between White = parking light (+), Red = ignition 15 (+), Black = ground (-).

OUT (headlights):
Yellow = high beam (+), Blue = low beam (+), Black = ground (-).

To daytime running light: White = parking light (+), Red = daytime running light (+)
