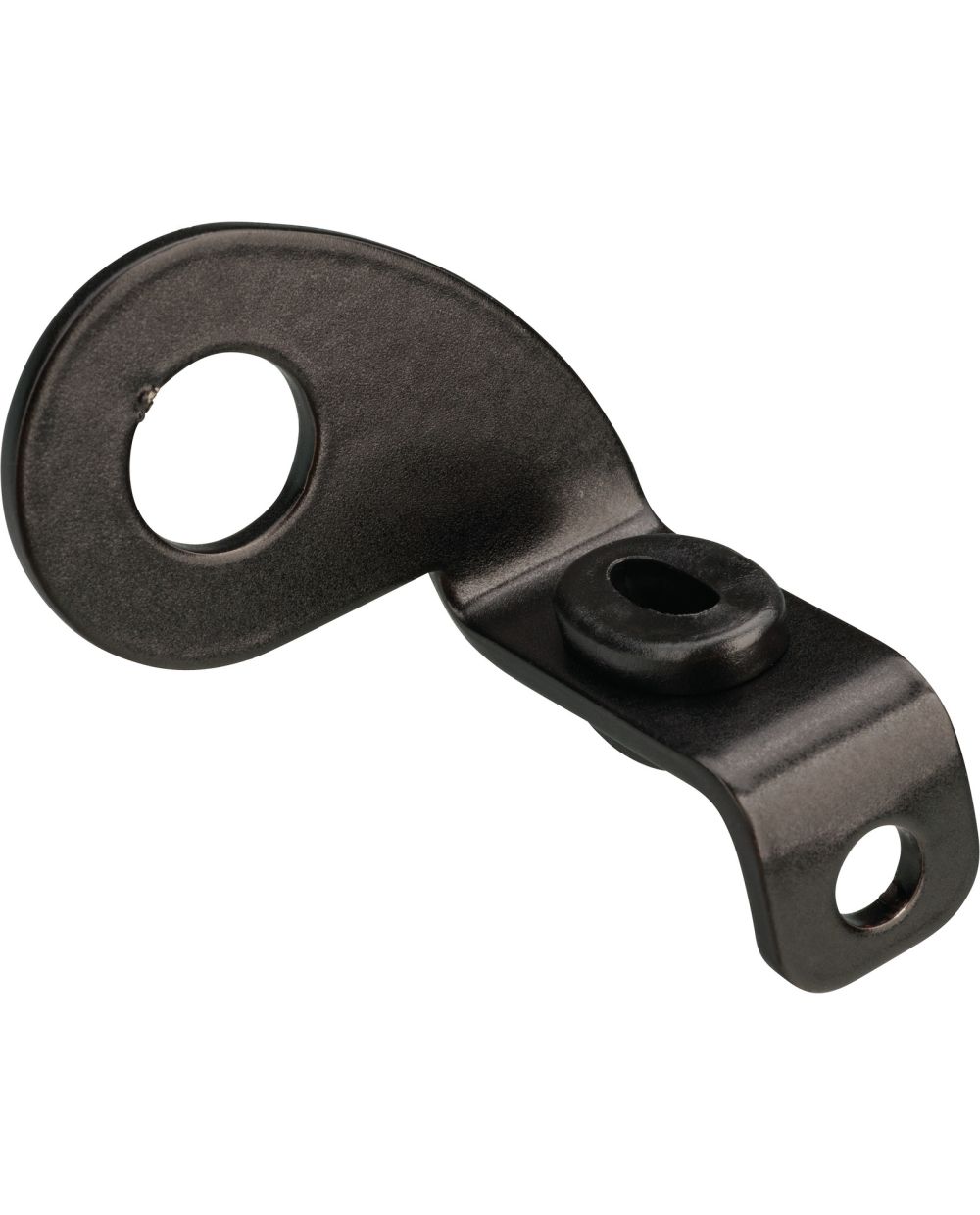

Bracket for Motoscope magnetic sensor, stainless steel black coated, assembly on the left brake caliper bracket

With the magnet sensor bracket from Two Hands Motorcycles, you can integrate the magnet sensors of the Motoscope speedometers optimally and inconspicuously into your front. Thanks to the sophisticated cable routing, you can route the sensor cable to your speedometer almost invisibly.

• Sophisticated mounting of your Motoscope magnet sensors
• High-quality stainless steel for a long service life
• Integrated cable routing
• Compatible with all magnet sensors from Motogagdet
• Mounted on the left-hand brake caliper mount

Installation: Plug and play - quick and easy. First, mount your Motoscope magnet sensor with the magnet sensor bracket from Two Hands Motorcycles. Now remove the lower screw of the brake caliper and tighten it again with the magnet sensor bracket.
Glue the magnet to the centre of one of the brake disc bolts. We recommend using ‘Loctite 648’ adhesive.
Then carefully turn the front wheel until the magnet and the sensor are at the same height. Now adjust the position of the sensor using the two nuts so that the distance between the magnet and the sensor is approx. 2 mm. After checking the distance and that the wheel can move freely, the magnetic sensor is firmly screwed to the bracket.
